Mobile soldering exhaust system

APPLICATIONS
  • suitable for all soldering applications
  • Board and printed circuit board production
  • up to 10 work places
TECHNICAL SPECIFICATIONS:
1,1 kW 1,5 kW
Volume rate 2.000 m³/h 3.000 m³/h
Motor power 1,1 kW 1,5 kW
Power supply 380 - 400 V / 50 Hz 380 - 400 V / 50 Hz
Filter effectivity ≥ 99,9 % ≥ 99,9 %
Noise level < 68 dB(A) < 72 dB(A)
Dimmensions 700 x 700 x 1.115 mm 700 x 700 x 1.115 mm
Weight 161 kg 171 kg

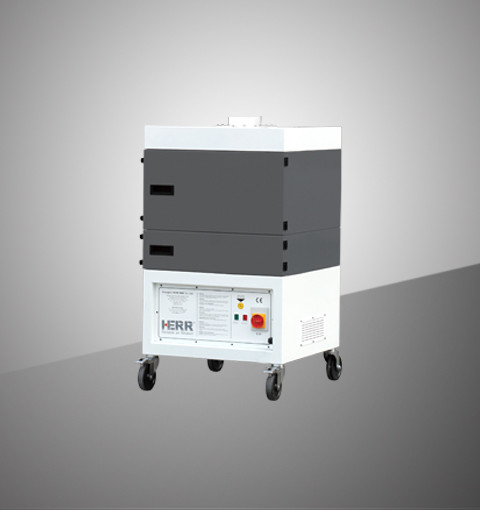

HERR soldering exhaust purification system

HERR soldering exhaust purification system can handle the work loads of 10 or more handheld soldering stations. This system is most useful in the assembly line of PCB manufacturing.
Soldering exhaust is purified by mechanical filtration and is equipped with activated carbon filters to remove chemical and odour elements. The industrial strength system is very effective at removing soldering fumes. The soldering exhaust purifier is available with fixed feet or with four lockable castor wheels.

Parts and accessories

Activated carbon filter

910201 Activated carbon filter
